industrial alarm system

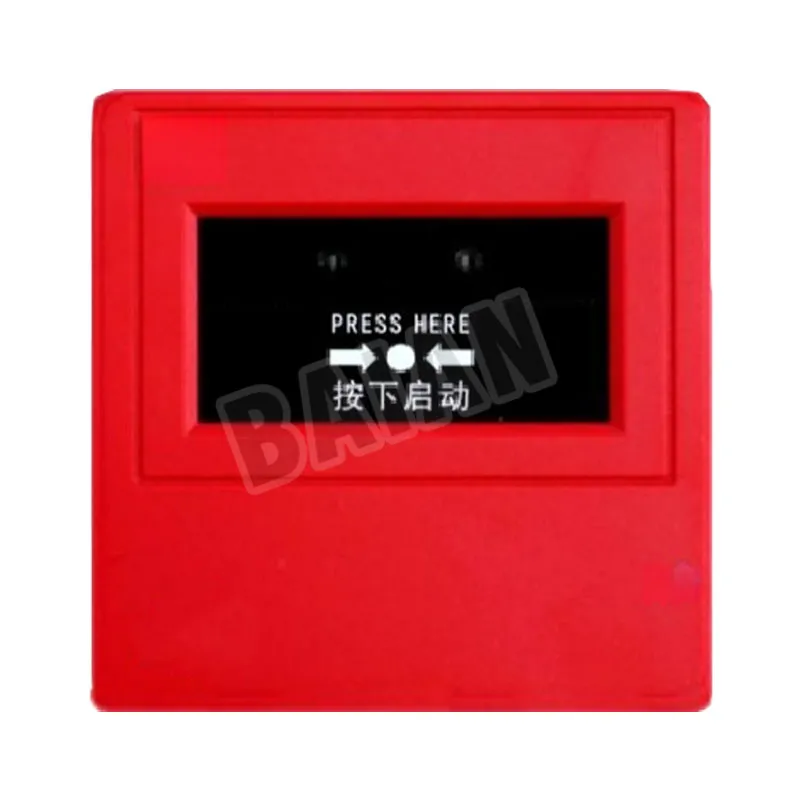

Fire Hydrant Button

Professional Fire Hydrant Button manufacturer - Baian. We offers reliable, certified fire fighting equipment backed by technical support and global experience.

ISO 9001 Global shipping Pyrosafe Tech
  • Engineering support with NFPA / EN compliant documentation
  • Worldwide shipping with stock-ready warehouse capacity
  • Certified equipment with traceable quality control
Specifications

Technical parameters

ParameterValue
Operating EnvironmentTemperature: -10℃~+55℃; Humidity: ≤95%RH (non-condensing)
Operating VoltageBus 24V (powered by safety barrier)
Monitoring Current≤0.2mA
Alarm Current≤0.8mA
Inspection Start IndicatorNormal monitoring state: flashing red; Start-up state: solid red
Answer IndicatorNormal monitoring state: off; Response state: solid green
Explosion-proof MarkEXib IICT6 Gb
Wire TypeTwo-bus (non-polarized)
Button Contact CapacityDC24V/0.1A
Intrinsically Safe Explosion-proof ParametersUi:28VDC li:93mA Pi:0.65W Ci:0.02μF Li: 0mH
Associated EquipmentS2004/S2003 Zener Safety Barrier
Enclosure Protection RatingIP30
Enclosure Material and ColorABS Red
Dimensions90mm×90mm×41mm (including base) (L×W×H)
Base Mounting Hole Spacing55mm~60mm
Applicable StandardsGB16806-2006 "Fire Protection Control System", GB3836.1-2010 "Explosive Atmospheres - Part 1: Equipment - General Requirements", GB3836.4-2010 "Explosive Atmospheres - Part 4: Equipment Protected by Intrinsic Safety"
Product Details

About this product

Professional Fire Hydrant Button manufacturer - Baian. We offers reliable, certified fire fighting equipment backed by technical support and global experience.

Get a Quote

Need this product specified for your project?

Send us your system requirements — our engineers respond with sizing, certification and lead-time details within one business day.

WhatsApp: +86 180 4636 4699 unnafire@foxmail.com
