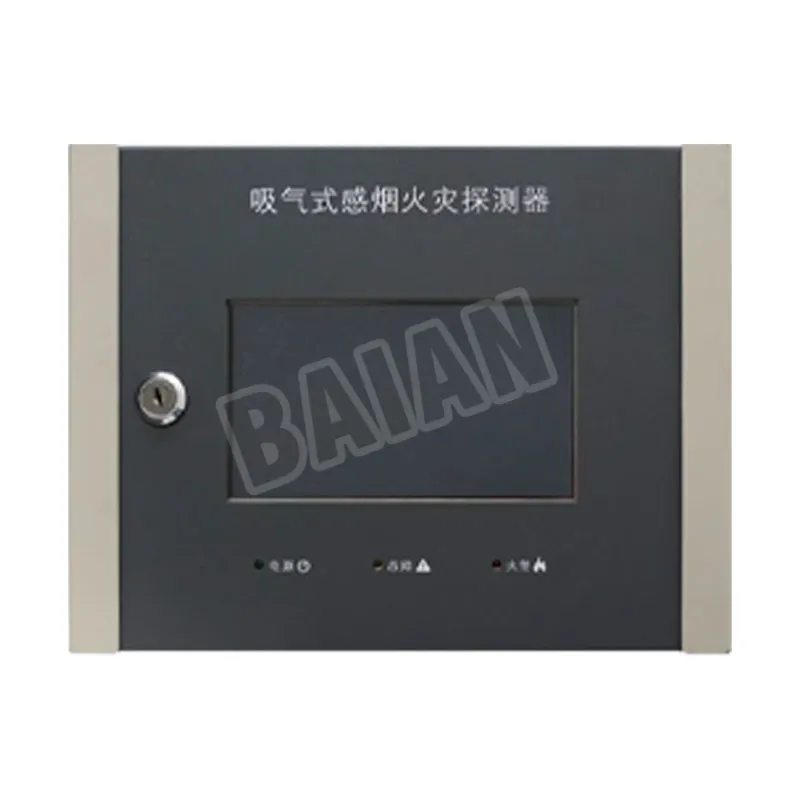

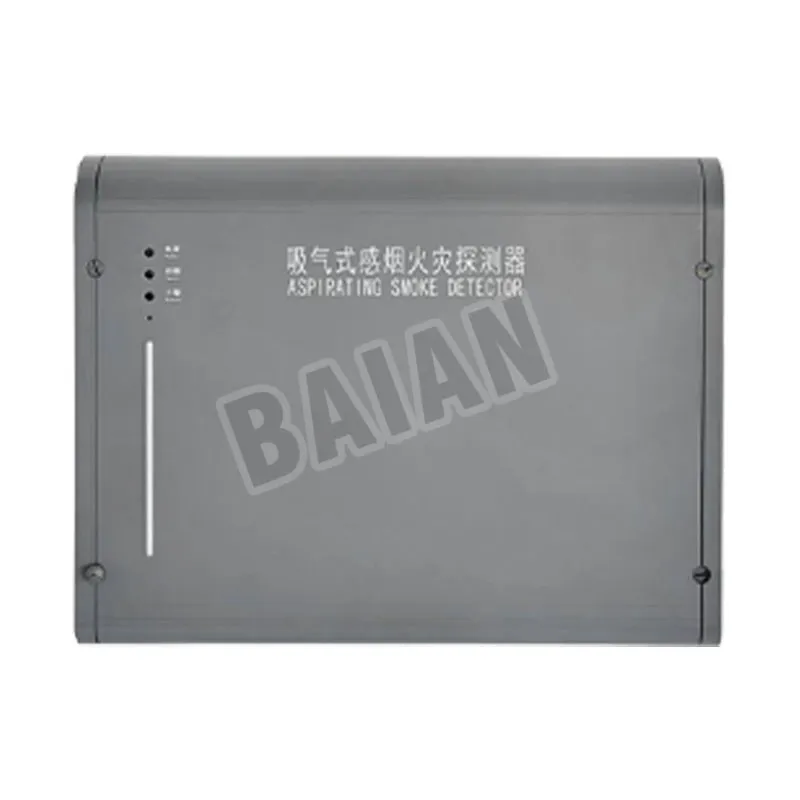

Aspirating Smoke Detector
JTY-GX-EI8922/JTY-GX-EI8924
JTY-GX-EI8922N/JTY-GX-EI8924N
Features
1.Visualized smoke concentration: After connecting to the device via a smart terminal, users can view the smoke concentration waveform for a clear understanding of the current smoke situation and facilitate timely adjustments.
2.Utilizes laser cavity detection technology for accurate smoke particle monitoring.
3.Multi-level alarm function: Divided into five alarm stages, with parameter values for each stage customizable to customer needs.
4.Touchscreen LCD user interface (8922/8924) and simple, intuitive operation mode; connects to our fire alarm controller via a two-wire bus.
5.Suitable for energy storage fire protection, large spaces (such as airports and stadiums), warehouses, special locations (cleanrooms, cold storage), and important locations (such as computer rooms and libraries).
Technical Parameter
| Product Model |
JTY-GX-E18922 |
JTY-GX-E18922N |
JTY-GX-E18924 |
JTY-GX-E18924N |
| Environmental Characteristics |
Operating Temperature |
-10°C to 40°C |
| Transport Temperature |
-40°C to 70°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
5%-95%, non-condensing |
| Storage Humidity |
5%-95% |
| Altitude Requirement |
0 m to 4000 m (In environments between 2000 m and 4000 m, the operating temperature decreases by 1°C for every 200 m increase in altitude) |
| Power Supply Parameters |
Input Voltage |
Rated operating voltage: DC24V (Operating voltage range: 20.4V~26.4V) |
| Operating Current |
Maximum operating current: 1.3A |
| Host Parameters |
Protection Area |
The entire unit has 52 holes, providing a protection area of 2000m² |
The entire unit has 104 holes, providing a protection area of 4000m² |
| Sensitivity Range |
≤0.8%obs/m (refer to national standard GB15631-2008) |
| Filtering |
2-stage filtration |
| Analysis Chamber |
Single chamber |
| Number of Channels |
Dual channel |
Four channel |
| Address Points |
1 address point |
| Sampling Tube Length |
Total length of dual-tube: 200m; maximum length of single-tube: 100m |
Total length of four-tube: 400m; maximum length of single-tube: 100m |
| Sampling Tube Size |
Outer diameter: 25mm; Inner diameter: 21mm |
| Number of Sampling Holes |
26 single-tube holes, 52 dual-tube holes in total |
26 single-tube holes, 104 four-tube holes in total |
| Sampling Hole Diameter |
2.0mm x 25, 5.0mm (end cap) x 1/tube |
| Airflow Monitoring |
3 levels |
| Event Log |
30,000 pieces |
| Alarm Levels |
5 levels |
| Intake Volume |
Stepless speed regulation |
| Display and Operation |
7 o'clock touchscreen |
LED lights |
7 o'clock touchscreen |
LED lights |
| Relay Output |
3 pairs |
| Relay Carrier |
DC30V 2Amax/AC125V 0.5Amax |
| Communication Method |
Dual bus, RS485 |
| Other Parameters |
Safety Design |
IEC60950-1 |
| MTBF |
100,000 hours |
| Dimensions |
300mm×230mm×115mm (L×H×D) |
| Weight |
<4.2kg |
| Installation Method |
Wall-mounted installation |
| Heat Dissipation Method |
Natural heat dissipation |
| Execution Standards |
GB15631-2008 |
