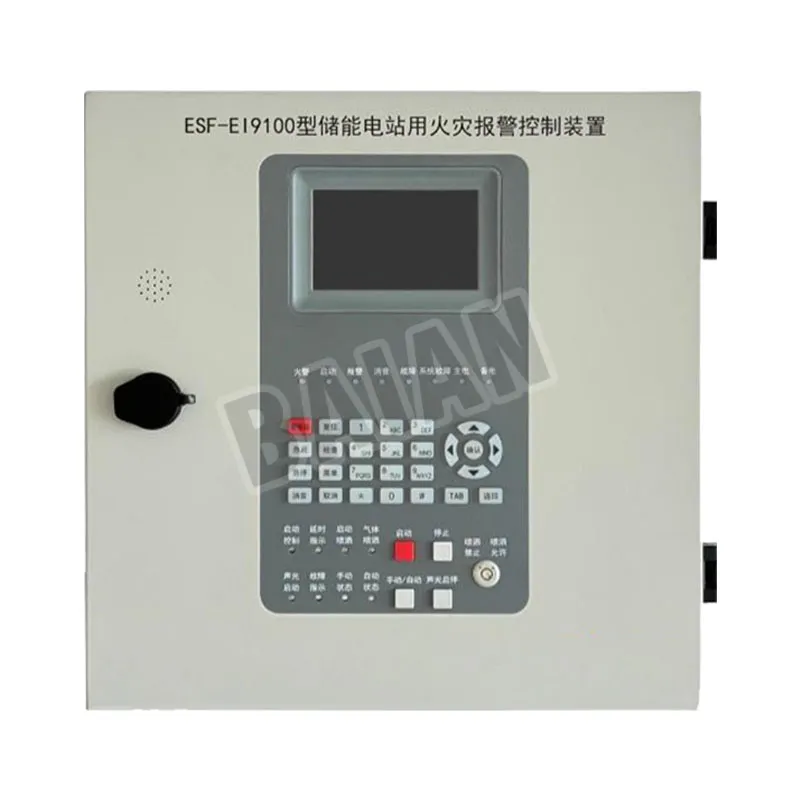

Fire Alarm Control Device For Energy Storage Power Station
ESF-EI9100
Features
1.4-inch high-definition color LCD display with intelligent help prompts and a user-friendly interface;
2.Non-polar two-bus technology simplifies system wiring, ensures stable and reliable communication, and saves on project costs;
3.Flexible configuration and high integration, combining fire alarm and gas extinguishing control functions into one compact wall-mounted design with IP30 protection rating, meeting various engineering application needs;
4.Equipped with a black box function, capable of recording four types of event history information, storing up to 4000 records each for fire alarm, linkage, alarm, and historical records.
Technical Parameter
| Main power voltage |
AC220V 50Hz |
| Backup power voltage |
1 DC12V 7Ah sealed lead-acid battery |
| Output current |
Circuit 1~4, 0.75A each; Circuits 5 & 6, 0.3A total |
| Number of circuits |
Total 6 circuits
Number of circuits dedicated to composite fire detectors: 4, circuits 1~4; Number of circuits dedicated to fire alarms: 1, circuit 5; Number of circuits dedicated to fire compartments: 1, circuit 6. |
|
| Unit capacity |
Total 432 points
Circuit 1~4: 100 points each, connected to composite fire detectors, single circuit address range 1~100;
Circuit 5: Connected to fire alarm, manual fire alarm button, point-type photoelectric smoke detector, point-type heat detector, address range 1~32;
Circuit 6: Connected to emergency start/stop button, gas release alarm, fire alarm, output/output module, address range 33~64.
Note: Circuits 1~4 each have 100 points, circuits 5 & 6... Total 32 points |
|
| Fire compartment |
1 unit |
| Cylinder output |
DC24V/3A, output mode supports pulse mode/level mode, configurable |
| Cylinder feedback |
1 unit, external normally open contact, closes when activated |
| 24V power output |
Maximum 0.2A |
| Display method |
4-inch high-definition color LCD screen, resolution 800×480 |
| Operating humidity |
≤95%, non-condensing |
| Usage environment |
-20°C~60°C |
| Alarm sound signal |
Bustone alarm |
| Circuit communication method |
Dual bus |
| Dry contact output |
6 groups (normally open) dry contact outputs 1~2 can connect devices not exceeding DC28V/10mA; Dry contact outputs 3~6 can directly control AC220V devices with power not exceeding 1000W. |
| Networking method |
CAN/RS485 |
| Protection rating |
IP30 |
| Dimensions |
Length 320mm × Width 320mm × Thickness 125mm |
| Installation method |
Wall-mounted |
