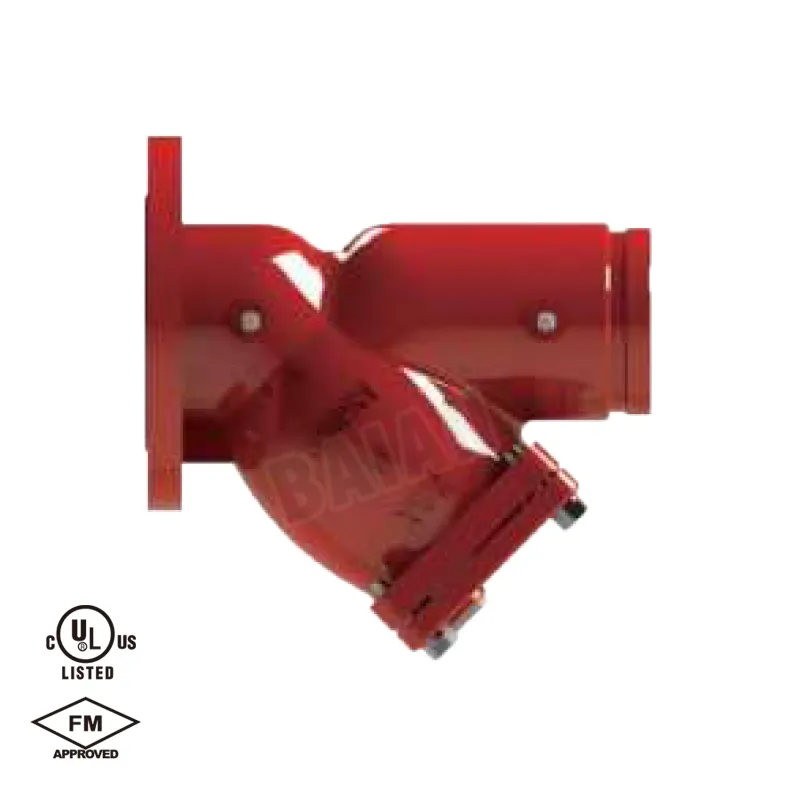

UL Listed Y Strainer Flange-Groove Ends
Technical Specification
Valve Standard：AWWA C550
Working Pressure：200PSI/ 250PSI / 300PSI
Working Temperature：-10°C- 120°C
Connection Ends：ASME B16.1 CLASS125 / B16.42 CLASS150/B16.CLASS250 / EN1092-2 PN10/PN16/PN25 / BS10 Table D / Table E / AWWA C 606 / VDS2100
Material Specification
| No. |
Part |
Material |
Specification |
| 1 |
Body |
Ductile Iron |
ASTM A536 65-45-12 |
| 2 |
Bolt |
Carbon Steel |
GR.8.8 |
| 3 |
Washer |
Galvanized Carbon Steel |
-- |
| 4 |
Washer |
Galvanized Carbon Steel |
-- |
| 5 |
Cover |
Ductile Iron |
ASTM A536 65-45-12 |
| 6 |
Screen |
Stainless Steel |
SS304 |
| 7 |
Plug |
Galvanized Carbon Steel |
-- |
| 8 |
O-Ring |
EPDM |
-- |
| 9 |
Test Screw |
Steel |
ASTM B16 |
Dimension
| DN |
INCH |
L(mm) |
H(mm) |
H1(mm) |
PN16 |
L1(mm) |
L2(mm) |
| φD1 |
φD2 |
| 50 |
2" |
203.2 |
130 |
195 |
φ60.3 |
φ57 |
8 |
15.9 |
| 65 |
2½" |
254 |
158 |
240 |
φ73/φ76.1 |
φ69.7/φ72 |
8 |
15.9 |
| 80 |
3" |
260 |
175 |
270 |
φ88.9 |
φ84.7 |
8 |
15.9 |
| 100 |
4" |
308.1 |
202 |
320 |
φ114.3 |
φ109.8 |
9.5 |
15.9 |
| 125 |
5" |
398.3 |
290 |
425 |
φ139.7/φ141.3 |
φ135.2/φ136.8 |
9.5 |
15.9 |
| 150 |
6" |
471.4 |
334 |
495 |
φ165.1/φ168.3 |
φ160.5/φ163.7 |
9.5 |
15.9 |
| 200 |
8" |
549.4 |
391 |
570 |
φ219.1 |
φ214.1 |
11 |
19 |
| 250 |
10" |
654.1 |
459.4 |
700 |
φ273 |
φ268 |
12.7 |
19 |
| 300 |
12" |
762 |
590 |
840 |
φ323.9 |
φ317.9 |
12.7 |
19 |
