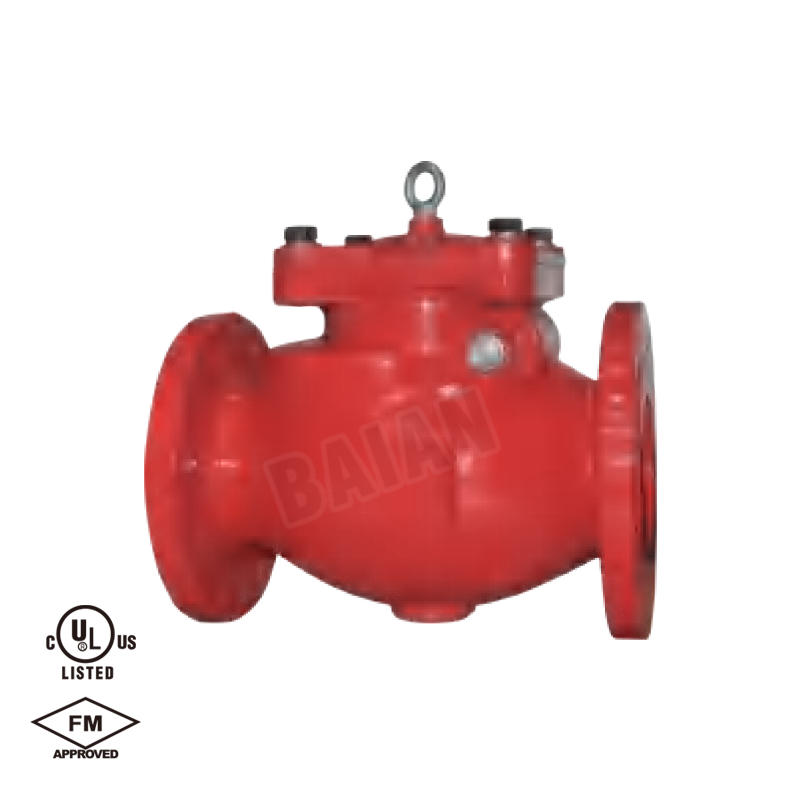

UL Listed Swing Check Valve Resilient Seated Flanged Ends

Technical Specification

Valve Standard：AWWAC508/AWWA C550
Working Pressure：200PSI/250PSI/300PSI
Working Temperature：-10°C- 120°C
Flanged Ends：ANSI B16.1 CLASS125 / B16.42 CLASS150 / B16.1 CLASS250 / EN1092 PN10/PN16 / Tatle D / Table E / CI250 (DN65 - DN300) / EN1092 PN25 (DN50 - DN125.DN200 -DN300)

Material Specification

No. Part Material Specification
1 Cover Ductile Iron ASTM A536 65-45-12
2 Hexagon Head Bolts Carbon Steel GR.8.8
3 Washer Carbon Steel --
4 Spring Washer Carbon Steel --
5 O-Ring EPDM --
6 Body Ductile Iron ASTM A536 65-45-12
7 Rocker Ductile Iron ASTM A536 65-45-12
8 Hexgonai Slot Thin Nut Stainless Steel SS304
9 Washer Stainless Steel SS304
10 Split Pin Stainless Steel SS304
11 Disc Stainless Steel+Carbon Steel+EPDM SS304
12 Seat Brass B271 C84400
13 Shaft Hole Plug Stainless Steel SS304
14 Plug The Gasket EPDM --
15 Radial Spindle Stainless Steel SS304
16 Scutcheon Stainless Steel SS304
17 Swing Arm Sleeve Bronze B150 C63000
18 Plug Stainless Steel SS304
19 AXle Hole Sleeve Bronze B150 C63000
20 Shaft Sleeve Bronze B150 C63000

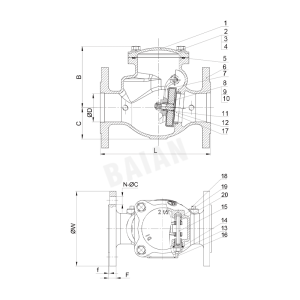

Dimension

DN INCH B(mm) C(mm) φD L(mm) φW
50 2" 130 66 φ54 203 φ165
65 2½" 141 72 φ65 254 φ185
80 3" 145.5 85 φ82 279 φ200
100 4" 158.5 106 φ100 330 φ230
125 5" 212 120 φ125 356 φ255
150 6" 222 136 φ150 406 φ285
200 8" 265 163.5 φ200 495 φ345
250 10" 303 200 φ250 559 φ405
300 12" 333 248.5 φ300 660 φ485
