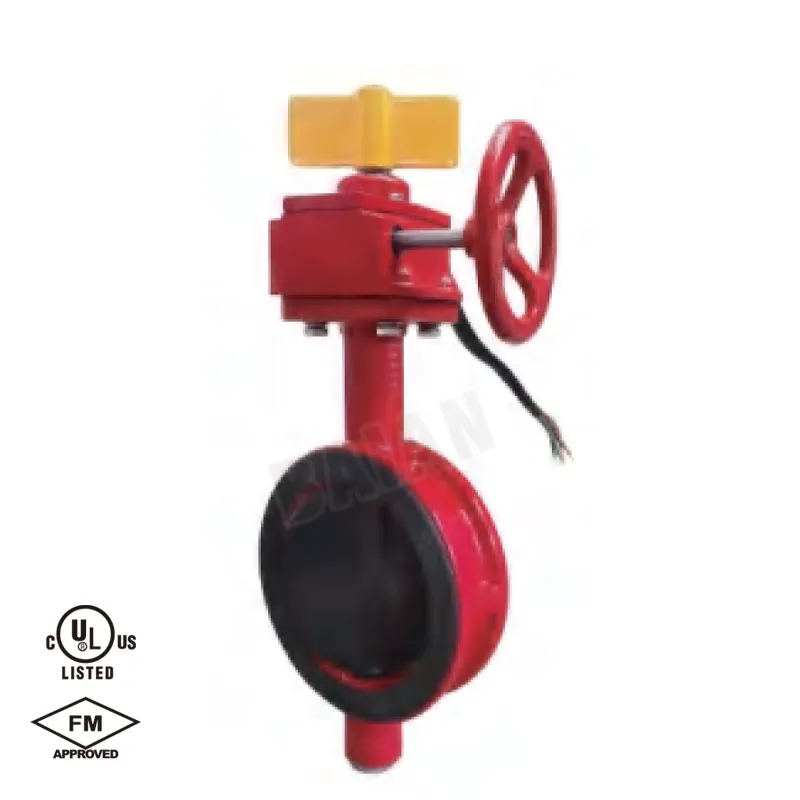

UL Listed Lugged Butterfly Valve With Signal Gear Box

Technical Specification

Valve Standard：FM1112/UL1091
Face To Face Standard：IS05752
Test Standard：FM1112/UL1091
Working Pressure：200PSI/250PSI/300PSI
Working Temperature：-10°C-120°C
Connection Ends：BS EN1092-2 / ASMR B16.42 / Class150

Material Specification

No. Part Material Specification
1 Body Ductile Iron ASTM A536 65-45-12
2 Upper Shaft Gland Galvanized Carbon Steel --
3 Cross Recessed Countersunk Head Screw Galvanized Carbon Steel --
4 Short Shaft Sleeve Bronze/Carbon Steel C63000/--
5 O-Ring EPDM --
6 Long Shaft Sleeve Bronze/Carbon Steel C63000/--
7 Upper Shaft Stainless Steel SS410
8 Disc Ductile Iron+EPDM ASTM A536 65-45-12
9 Lower Shaft Stainless Steel SS410
10 Hex Socket Plug Stainless Steel SS304
11 Sealing Ring EPDM --
12 Hexagon Head Bolt Stainless Steel SS304
13 Spring Gasket Stainless Steel SS304
14 Flat Gasket Stainless Steel SS304
15 Half-Round Key Steel 45#
16 Electrical Turbine Box Ductile Iron GGG40
17 Indicator Ductile Iron ASTM A536 65-45-12
18 Hexagon Flat End Setting Screw Galvanized Carbon Steel --
19 Adjusting Washer (DN50, DN100) EPDM --
20 Large Falt Pad Class A Stainless Steel SS304
21 Hex Socket Round Head Screw Stainless Steel SS304



 Dimension



DN INCH A(mm) B(mm) C(mm) D(mm) L(mm) L1(mm) φD φE EN 1092-2 ASME B16.42 CL150 CL150
PCD N-M PCD N-M PCD
50 2" 140.5 77 110 262.4 43 47 φ82 φ108 φ125 4-M16 φ120.7 4-5/8-11 UNC φ120.7
65 2½" 152.5 80 110 274.5 46 51 φ97 φ108 φ145 4-M16 φ139.7 4-5/8-11 UNC φ139.7
80 3" 157.5 87 110 279.5 46 51 φ109 φ108 φ160 8-M16 φ152.4 4-5/8-11 UNC φ152.4
100 4" 176 108 110 298 52 57 φ140 φ108 φ180 8-M16 φ190.5 8-5/8-11 UNC φ190.5
125 5" 191 131.5 133 313.5 56 61 φ165 φ150 φ210 8-M16 φ215.9 8-3/4-10 UNC φ215.9
150 6" 202.5 144 133 319 56 61 φ198 φ150 φ240 8-M20 φ241.3 8-3/4-10 UNC φ241.3
200 8" 243.5 173.5 187 379 62 67 φ252 φ250 φ295 12-M20 φ298.5 8-3/4-10 UNC φ298.5
250 10" 273 207.5 187 409 68 73 φ304 φ250 φ355 12-M24 φ362 12-7/8-9 UNC φ362
300 12" 311 261 187 465 78 83 φ355 φ250 φ410 12-M24 φ431.8 12-7/8-9 UNC φ431.5
