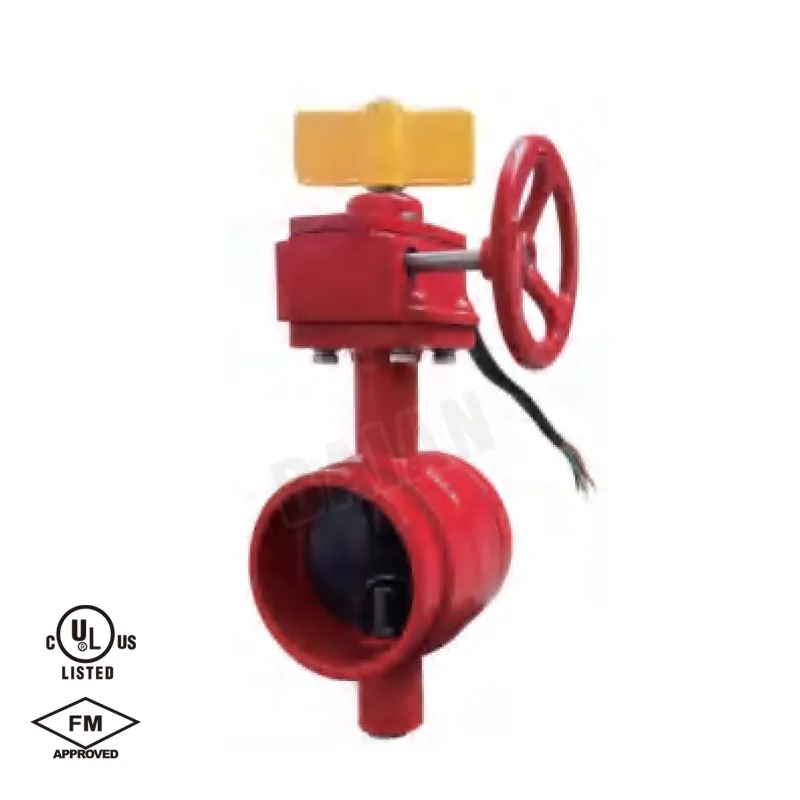

UL Listed Grooved Butterfly Valve With Signal Gear Box

Technical Specification

Valve Standard：FM1112/UL1091
Face To Face Standard：MSS-SP67Long
Test Standard：FM1112/UL1091
Working Pressure：200PSI/250PSI/300PSI
Working Temperature：-10°C-120°C
Connection Ends：AWWA C 606 / VDS2100

Material Specification

No. Part Material Specification
1 Body Ductile Iron ASTM A536 65-45-12
2 Upper Shaft Gland Galvanized Carbon Steel --
3 Cross Recessed Countersunk Head Screw Galvanized Carbon Steel --
4 Short Shaft Sleeve Bronze (DN50 ~ DN100) / Carbon Steel (DN125 ~ DN300) C63000 / --
5 O-Ring EPDM --
6 Long Shaft Sleeve Bronze (DN50 ~ DN100) / Carbon Steel (DN125 ~ DN300) C63000 / --
7 Upper Shaft Stainless Steel SS410
8 Disc Ductile Iron+EPDM ASTM A536 65-45-12
9 Lower Shaft Stainless Steel SS410
10 Hex Socket Plug Stainless Steel SS304
11 Hexagon Head Bolt Stainless Steel SS304
12 Spring Gasket Stainless Steel SS304
13 Flat Gasket Stainless Steel SS304
14 Half-Round Key Steel 45#
15 Electrical Turbine Box Ductile Iron GGG40
16 Indicator Ductile Iron ASTM A536 65-45-12
17 Hexagon Flat End Setting Screw Galvanized Carbon Steel --
18 Rear Axle Pad (DN50, DN100) EPDM --
19 Hex Socket Flat Round Head Screw Stainless Steel SS304
20 Large Flat Pad Class A Stainless Steel SS304

Dimension

DN INCH A(mm) B(mm) C(mm) D(mm) L(mm) φE (AWWA C606) (GB/T 8260) CL
φD2 H1(mm) H2(mm) φD1 φD2 H1(mm) H2(mm) φD1 PCD
50 2" 95 77 110 217 84.5 φ108 φ60.33 7.93 15.88 φ57.15 φ60.3 7.93 15.88 φ57.2 120.7
65 2½" 98 80 110 220 98 φ108 φ73.03 7.93 15.88 φ69.09 φ76.1 7.93 15.88 φ72.3 139.7
80 3" 105 87 110 227 98 φ108 φ88.9 7.93 15.88 φ84.94 φ88.9 7.93 15.88 φ84.9 152.4
100 4" 135 108 110 256 116 φ108 φ114.3 9.53 15.88 φ110.08 φ114.3 9.53 15.88 φ110.1 190.5
125 5" 148 132 133 275 149 φ150 φ141.3 9.53 15.88 φ137.03 φ139.7 9.53 15.88 φ135.5 215.9
150 6" 165 144 133 292 147.6 φ150 φ168.28 9.53 15.88 φ163.96 φ165 9.53 15.88 φ160.9 241.3
200 8" 204 173 187 339 134 φ250 φ219.08 11.13 19.05 φ214.4 φ219.1 11.1 19.05 φ214.4 298.5
250 10" 245 208 187 380 160 φ250 φ273.05 12.7 19.05 φ268.28 φ273 12.7 19.05 φ268.3 362
300 12" 277.5 261 187 426.5 165 φ250 φ323.85 12.7 19.05 φ318.3 φ323.9 12.7 19.05 φ318.3 431.5
