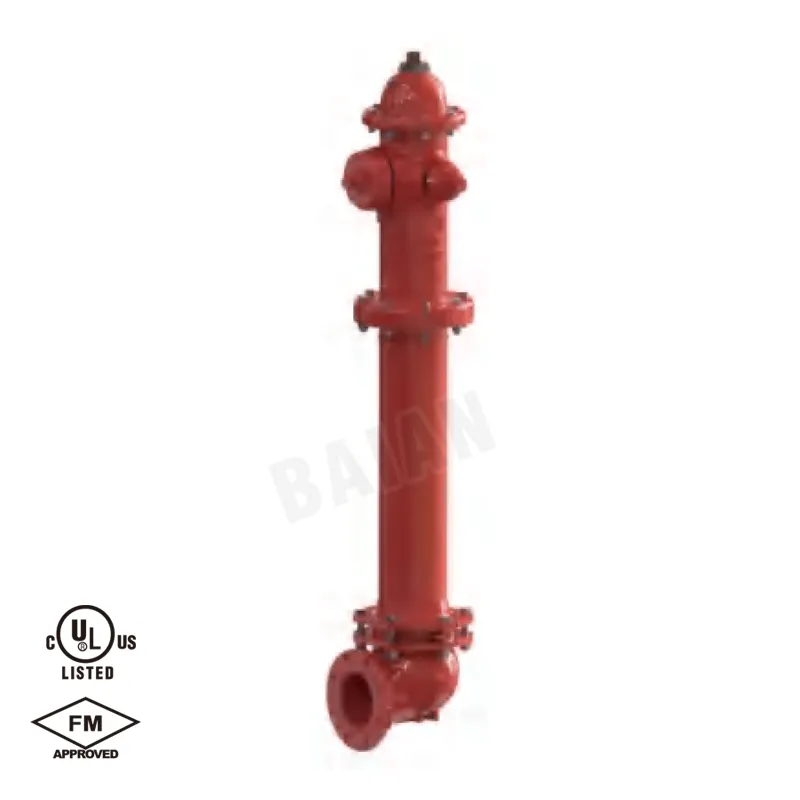

UL Listed Dry Barrel Fire Hydrant

Technical Specification

Design Standard：FM 1510/UL 246/ AWWA C502
Coating Standard：AWWA C550
Nozzle Thread Standard：NFPA 1963
Hose Nozzle：2.5"-2
Pumper Nozzle：4"or 4.5"-1
Mechanical iont：Size: 6" ASNI / AWWA C111/A21.11/ANSI/AWWA C153 / A21.53
Flange End：Size: 6" ASNI Class 125/ 150/BSEN 1092-2PN10/PN16
Working Pressure：250PSI

Material Specification

No. Part Material Specification
1 Operating Nut Brass C84400
2 Dust Ring EPDM --
3 Lock Nut Stainless Steel CF8
4 Antifiction Pad Bronze C63000
5 Plug Stainless Steel SS304
6 Cover Ductile Iron ASTM A536 65-45-12
7 Top Body Ductile Iron ASTM A536 65-45-12
8 Top Shaft Stainless Steel SS420
9 Gland Stainless Steel SS304
10 Hose Nozzle Cap (4") / Hose Nozzle Cap (4.5") Ductile Iron ASTM A536 65-45-12
11 Hose Nozzle Gasket (4") / Hose Nozzle Gasket (4.5") EPDM --
12 Hose Nozzle (4") / Hose Nozzle (4.5") Brass C84400
13 Chain Stainless Steel SS304
14 O-Ring EPDM --
15 Coupling Stainless Steel SS420
16 Down Body Ductile Iron ASTM A536 65-45-12
17 Safety Flange Cast Iron HT200
18 Down Shaft Stainless Steel SS420
19 Drainage Ring Cover Ductile Iron ASTM A536 65-45-12
20 Elbow Body Ductile Iron ASTM A536 65-45-12
21 Hexagon Bolt Stainless Steel SS304
22 Plain Washer Stainless Steel SS304
23 Lock Washer Stainless Steel SS304
24 Hexagon Nut Stainless Steel SS304
25 O-Ring EPDM --
26 Drain Valve Cover Seal EPDM --
27 O-Ring EPDM --
28 Pin Shaft Stainless Steel SS304
29 Pin Stainless Steel SS304
30 Hexagon Bolt Stainless Steel SS304
31 Plain Washer Stainless Steel SS304
32 Lock Washer Stainless Steel SS304
33 Hexagon Nut Stainless Steel SS304
34 Upper Plug Body Seal EPDM --
35 Hexagon Socket Head Cap Screws Stainless Steel SS304
36 O-Ring EPDM --
37 O-Ring EPDM --
38 Hexagon Bolt Stainless Steel SS304
39 Plain Washer Stainless Steel SS304
40 Lock Washer Stainless Steel SS304
41 Hexagon Nut Stainless Steel SS304
42 O-Ring EPDM --
43 O-Ring EPDM --
44 Hose Nozzle Cap Ductile Iron ASTM A536 65-45-12
45 Hose Nozzle Gasket EPDM --
46 Hose Nozzle Brass C84400
47 Hexagon Socket Set Screws Stainless Steel SS304
48 O-Ring EPDM --
49 Drain Valve Cover Brass+EPDM C84400
50 Spring Stainless Steel SS304
51 Hexagon Socket Head Cap Screws Stainless Steel SS304
52 Hex Nuts Stainless Steel SS304
53 Seat Ring Brass C84400
54 Tablet Ductile Iron ASTM A536 65-45-12
55 Hexagon Socket Head Cap Screws Stainless Steel SS304
56 Disc Seal EPDM --
57 Disc Ductile Iron ASTM A536 65-45-12
58 O-Ring EPDM --
59 Nut Press Ring Ductile Iron+EPDM ASTM A536 65-45-12
60 Hexagon Socket Set Screws Stainless Steel SS304

Dimension

Burial Depth H (mm) H1 (mm) H2 (mm)
1" 326 804 460
2" 543 804 460
3" 848 804 460
3"-6" 1001 804 460
4"-0" 1153 804 460
4"-6" 1306 804 460
5"-0" 1458 804 460
5"-6" 1611 804 460
6"-0" 1763 804 460
6"-6" 1916 804 460
7"-0" 2068 804 460
