Next-generation pulse air pressure spray monitor

Next-generation pulse air pressure spray monitor

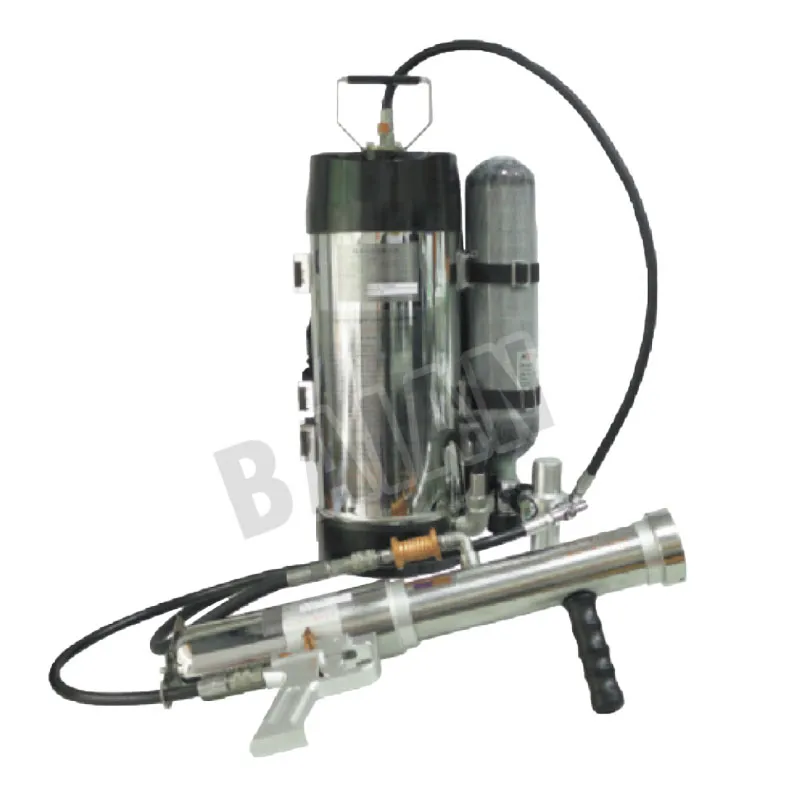

QWMB12 Backpack Pulse Air Pressure Spray Monitor

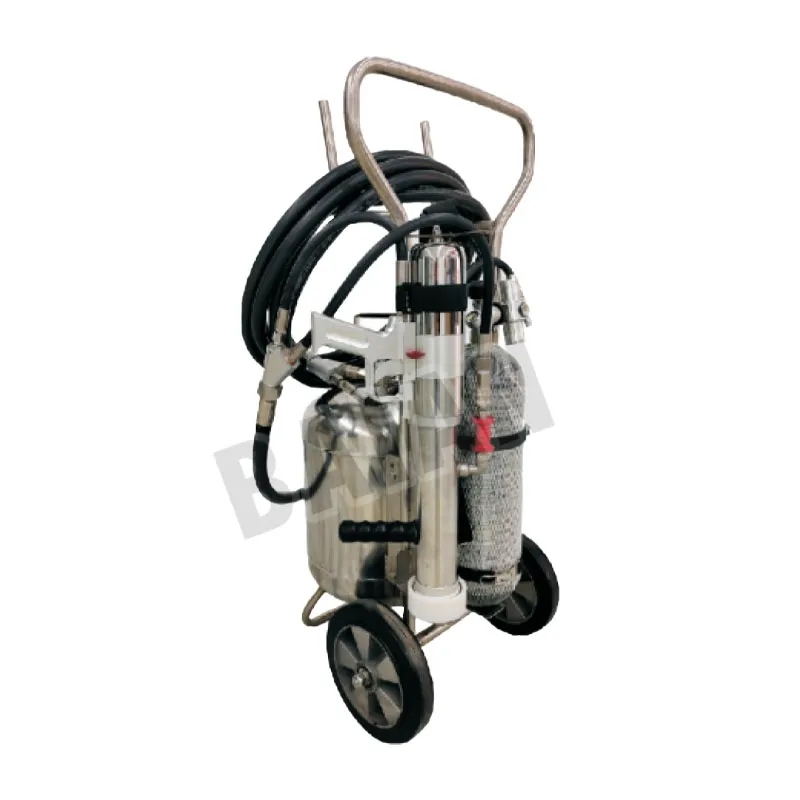

QWMT35 Trolley-Type Pulse Air Pressure Spray Monitor

Product Introduction

The new pulse atomizer is completely different from the original pulse gun in both appearance and structure. While maintaining the same spray volume, the overall length is 170 mm shorter and the weight is lighter, reaching 28.3 kg fully loaded. The design changes from a "tandem gun" to a "parallel gun," resulting in shorter air paths and greater hydraulic thrust, improved atomization, longer spray distance, and enhanced firefighting capabilities. The water tank has also been designed for safety, with a high-pressure air path protection device at the injector's air inlet for even safer operation. The product consists of an injector, a water storage tank, a carbon fiber gas cylinder, and a pressure relief system.

Features

1. Utilizing advanced pulse atomization technology for scientific firefighting, it maximizes the extinguishing power of limited extinguishing agent (water), quickly extinguishing fires or suppressing their spread. Furthermore, due to the effective atomization of the extinguishing agent, minimal residual residue remains after extinguishing the fire, preventing secondary pollution and damage, significantly improving overall firefighting and rescue capabilities. Because it can quickly suppress fires and reduce temperatures and smoke, it can be used to rescue trapped individuals or open escape routes in fires, preventing casualties.
2. This product can also fire fire extinguishing bombs.

Applicable Fires

Class A (solid fires), Class B (liquid fires), Class E (electrical fires).

Applicable Locations

Suitable for areas requiring special protection, such as forests and grasslands, cultural relics and buildings, large commercial complexes, industrial parks, warehouses, logistics parks, community streets, stations, airports, subways, and large public transportation. This product not only extinguishes large fires but also rapidly reduces temperatures, eliminates smoke, and promptly opens lifeways for rescue and escape, thereby maximizing life safety.

Product Advantages

1. High Efficiency
The utilization rate of fire extinguishing agent and water is extremely high, over 10 times that of conventional fire extinguishing methods.
2. Rapidity
The atomized particles effectively cover a wide area, with one liter of water covering over 20 m³.
3. Safety
All pressure-bearing areas are equipped with safety valves and appropriate measures to prevent human error.
4. High Intensity
The atomized particles can be sprayed directly to the base of the fire, extinguishing the fire directly.
5. Electrical Insulation
When spraying against live high-voltage equipment under 50 kV, the spray can be applied from a distance of two meters without causing electric shock to the operator.
6. Modular Design
The sprayer features a modular design that can be integrated into various mobile fire extinguishing systems, enabling a wider range of applications. For example, when combined with a coaxial hose and hose reel, it not only improves the operator's firefighting capabilities but also reduces labor intensity.
