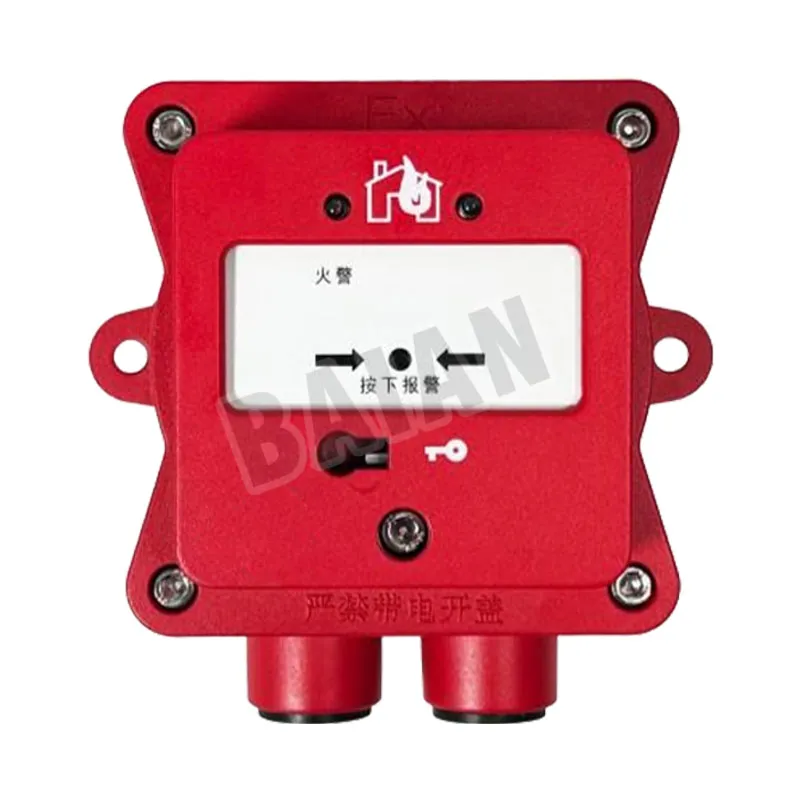

Manual Fire Alarm Button
Professional Manual Fire Alarm Button manufacturer - Baian. We offers reliable, certified fire fighting equipment backed by technical support and global experience.
- Engineering support with NFPA / EN compliant documentation
- Worldwide shipping with stock-ready warehouse capacity
- Certified equipment with traceable quality control
Specifications
Technical parameters
| Parameter | Value |
|---|---|
| Operating Environment | Temperature: -10℃ to +55℃; Humidity: ≤95%RH (non-condensing) |
| Operating Voltage | DC24V |
| Operating Current | Monitoring status ≤0.3mA; Alarm status ≤0.8mA |
| Explosion-proof Mark | Ex db IICT6Gb, Extb IIIC T80°C Db |
| Wire Type | Two-wire bus (non-polarized) |
| Button Contact Capacity | DC24V/0.1A |
| Indicator Lights | Red fire alarm confirmation light, flashing in normal monitoring state, constantly on in alarm state |
| Enclosure Protection Rating | IP66 |
| Enclosure Material and Color | Die-cast aluminum alloy, bright red |
| Base Mounting Hole Spacing | 120mm |
| Dimensions | 140mm×136mm×90mm (including base) (Length×Width×Height) |
| Applicable Standards | GB19880-2005 "Manual Fire Alarm Button", GB/T3836.1-2021 "Explosive Atmospheres Part 1: Equipment General Requirements", GB/T3836.2-2021 "Explosive Atmospheres Part 2: Equipment Protected by Flameproof Enclosures 'd'", GB3836.4-2021 "Explosive Atmospheres Part 31: Equipment Protected by Flameproof Enclosures 't'", GB3836.4-2021 "Explosive Atmospheres Part 31: Equipment Protected by Flameproof Enclosures 't'" |
| Applicable places | Suitable for Zone 1 and Zone 2 hazardous gas locations with explosion-proof requirements in petroleum, chemical and other industries, and explosive gas or vapor environments of Class IIA, IIB, and IIC, T1-T6 groups. |
Product Details
About this product
Professional Manual Fire Alarm Button manufacturer - Baian. We offers reliable, certified fire fighting equipment backed by technical support and global experience.
