Electric Remote Control Cannon

Model：PLKD12/64-80-D-BA (3840-4800LPM)

Material：Stainless Steel

Color：Silver

Inquiry Now
Category:

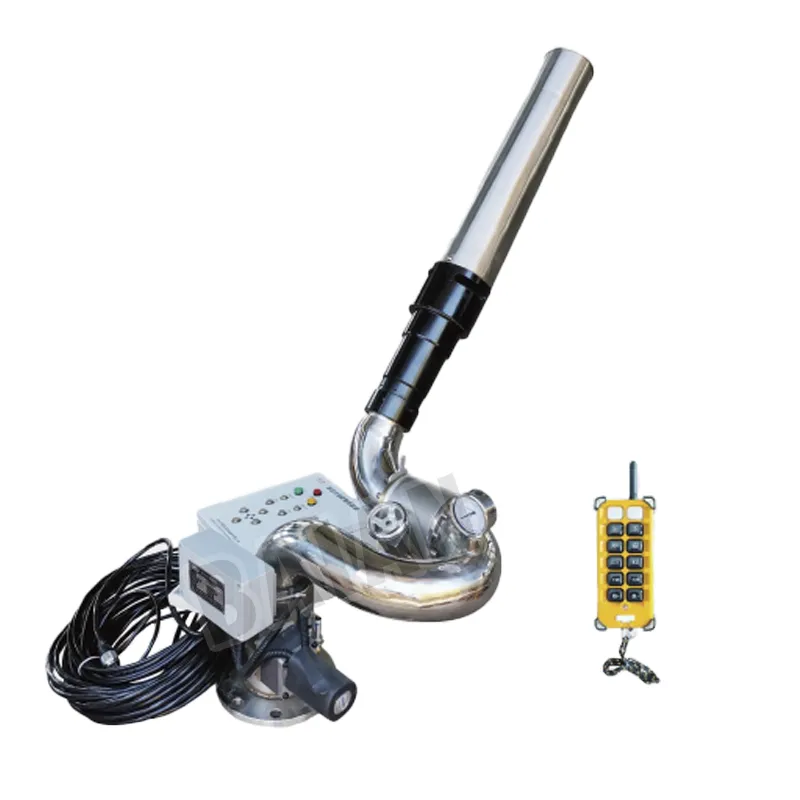

Electric Remote Control Cannon PLKD12/64-80-D-BA (3840-4800LPM)

Electric Remote Control Cannon

Specification

1.Fixed fire monitor is a new type of fire-fighting product with touch remote control, large flow, concentrated water flow, long range, simple operation, convenient and flexible.
2.It is fully functional and has the domestic advanced level.
3.It is a perfect combination of modern high technology and modern fire protection.
4.It can be operated by long-distance wireless remote control or wired electric control
5.Can easily and flexibly complete a series of operations such as horizontal rotation, up and down pitch, DC spray

Features

1.It realizes remote control
2.Stays away from the fire scene
3.Safe
4.Effective
5.Has a wide fire fighting area
6.Perfecting the new concept of fire fighting and is an ideal match in fire fighting equipment.
7.Stainless Steel construction;
8.Jetting Pattern: Straight stream,Fog;
9.Horizontal rotation angle ：≥180°
10.-15° to +60° elevate vertically;
11.Flange standard: BS4504,ANSI150,GB,etc.

Technical Parameter

Model specificatio / Parameters PLKD12/64-BA(Water) PLKD12/64-BA(Foam) PLKD12/64-BA(Water) PLKD12/64-BA(Foam)
Maximum allowable working pressure(MPa) 1.4 1.4 1.4 1.4
Rated working pressure(MPa) 1.2 1.2 1.2 1.2
Flow rate(L/S) 64 64 80 80
Range(m) ≥75 ≥70 ≥85 ≥80
Maximum spray angle(°) ≥90 ≥90 ≥90 ≥90
Pitch rotation angle(°) -15~+60 -15~+60 -15~+60 -15~+60
Horizontal rotation angle(°) ≥180 ≥180 ≥180 ≥180
Wired control distance(m) ≥200 ≥200 ≥200 ≥200
Wireless remote control distance(m) ≥150 ≥150 ≥150 ≥150
